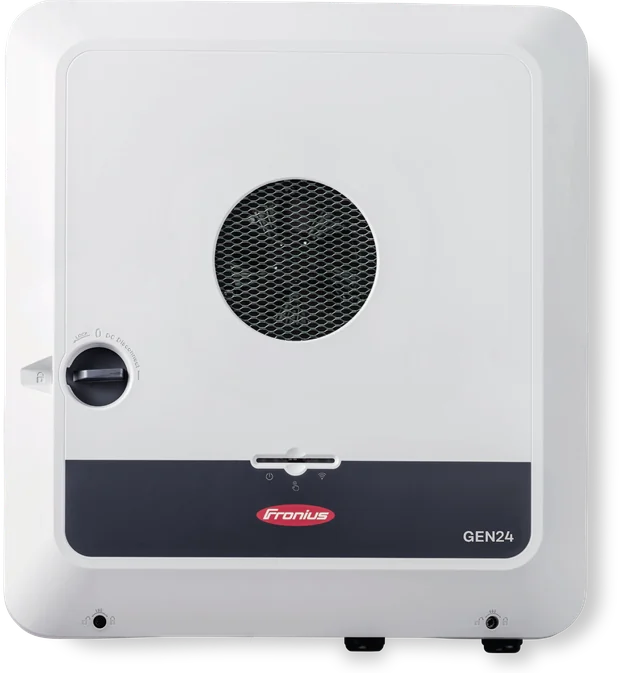

FroniusGEN24 Plus
The heart of your solar system, engineered in Austria. The GEN24 Plus runs your home on solar, charges a Fronius Reserva or BYD battery, and keeps power flowing in a blackout, even without a battery.
- PV Point &
Full Backup - Active
cooling - Up to 98.2%
efficiency - Multi Flow
technology - Solar.web
monitoring - IP66
rated
Watch it work.
Around the clock.
Your inverter makes hundreds of decisions a day about where your power goes. Drag through the day, or tap a moment, to see what it's doing.
Illustration of a typical Queensland day with a 10 kW solar system, a GEN24 Plus and a home battery. Real flows depend on your system, weather and usage.
PV Point or
Full Backup.
Every GEN24 is backup-ready. Choose how much of your home stays on when the grid goes down, then cut the power and see the difference.
Full Backup needs a GEN24 Plus with a battery and a Fronius backup switch. On the three-phase Symo GEN24, Full Backup is available on the 6.0 to 12.0 Plus models, and every Verto Plus (15 to 33.3 kW) supports Full Backup. Your proposal shows which option is included.
More freedom.
Less grid.
Use your own solar for power, heating, cooling and EV charging, day and night. The GEN24 Plus's built-in energy manager and four digital inputs and outputs help you use more of what your roof makes.
Single phase or
three phase.
Primo GEN24 Plus is for single-phase homes and Symo GEN24 Plus is for three-phase homes up to 12 kW. Bigger three-phase homes and businesses get the Fronius Verto Plus, from 15 to 33.3 kW. We match the model to your power supply and the size of your solar system. Check your switchboard or bill to see which you have, or just ask your consultant.
More than
the hardware
Backup without a battery
PV Point is an optional add-on for any GEN24: a dedicated socket that keeps running from solar during a daytime blackout, even with no battery. It's handy for charging phones, running a fridge or keeping the modem on.
Multi Flow Technology
Energy can flow in several directions at once, so during an outage your home runs on solar while the battery charges at the same time. Backup lasts longer.
Active cooling for a longer life
A built-in fan keeps the electronics cool, so the inverter keeps delivering full power in Queensland heat and lasts longer.
Dynamic Peak Manager
Finds the best operating point even when part of your roof is shaded, so you lose less energy to trees, chimneys and clouds.
Open and future-proof
Standard interfaces connect to Fronius and third-party products, from the Ohmpilot hot-water diverter to home automation and EV charging.
Solar.web monitoring
See every kilowatt-hour your system makes, stores and uses in the Fronius Solar.web app, and let Snap Solar keep an eye on it from our side too.
Backed by Fronius. Watched by us.
Your inverter reports to Fronius Solar.web around the clock, and Snap Solar monitors your system from our side too. If something ever needs attention, you call Snap Solar, not an overseas hotline. We manage every warranty claim from start to finish, with local offices in Mackay and on the Sunshine Coast and our own support technicians.
The numbers
| Primo GEN24 Plus | Symo GEN24 Plus | Verto Plus | |
|---|---|---|---|
| Grid connection | Single phase, 230 V | Three phase, 400 / 230 V | Three phase, 400 / 230 V |
| Power classes | 3.0 · 3.6 · 4.0 · 4.6 · 5.0 · 6.0 · 8.0 · 10.0 kW | 3.0 · 4.0 · 5.0 · 6.0 · 8.0 · 10.0 · 12.0 kW | 15 · 17.5 · 20 · 25 · 30 · 33.3 kW |
| MPP trackers | 2 | 2 | 3 |
| Max. solar array | 4.5 kWp (3.0) to 15 kWp (10.0) | 4.5 kWp (3.0) to 18 kWp (12.0) | 22.5 kWp (15.0) to 50 kWp (33.3) |
| PV Point | Optional 3 kVA backup socket, all models | Optional on all models | Not available (Full Backup instead) |
| Full Backup | All Primo GEN24 Plus models | Symo GEN24 6.0 to 12.0 Plus | All models |
| Compatible batteries | Fronius Reserva, BYD Battery-Box Premium HVS/HVM | Fronius Reserva, BYD Battery-Box Premium HVS/HVM | Fronius Reserva |
| Max. efficiency | 97.3 to 97.6% | 98.1 to 98.2% | 98.0 to 98.2% |
| Cooling | Active Cooling Technology | Active Cooling Technology | Active Cooling Technology |
| Protection | IP66 | IP66 | IP66 |
| Size (H × W × D) | 530 × 474 × 165 mm (to 6.0) · 595 × 529 × 180 mm (8.0, 10.0) | 530 × 474 × 165 mm (to 5.0) · 595 × 529 × 180 mm (6.0 to 12.0) | 865 × 574 × 279 mm |
| Weight | 15.4 kg (to 6.0) · 21 kg (8.0, 10.0) | 15.6 kg (to 5.0) · 23.4 kg (6.0 to 10.0) · 22.8 kg (12.0) | 43 kg |
| Monitoring | Fronius Solar.web | Fronius Solar.web | Fronius Solar.web |
