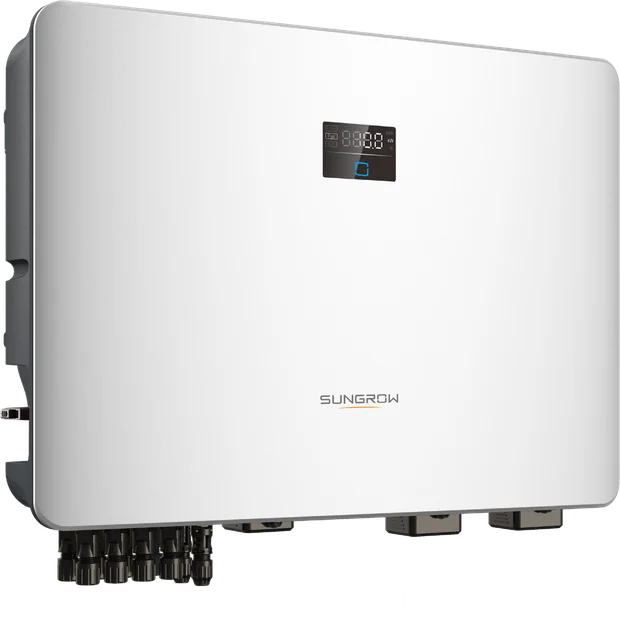

SungrowSH Series
The brain of your solar and battery system. A Sungrow hybrid inverter turns sunlight into power for your home, charges your battery, and switches you to backup in under 10 milliseconds when the grid goes down.
- <10 ms
backup - Up to 200%
solar oversize - Up to 98.2%
efficiency - AFCI
arc protection - iSolarCloud
app - IP65
rated
Watch it work.
Around the clock.
Your inverter makes hundreds of decisions a day about where your power goes. Drag through the day, or tap a moment, to see what it's doing.
Illustration of a typical Queensland day with a 10 kW solar system and a home battery. Real flows depend on your system, weather and usage.
Single phase or
three phase.
We match the inverter to your home's power supply and the size of your solar system. Check your switchboard or bill to see which you have, or just ask your consultant.
More than
the hardware
Whole-home backup built in
A built-in 63 A backup path means the inverter can carry your whole home through an outage, switching over in under 10 milliseconds. Most appliances won't even notice.
Room to add more solar
The single-phase models accept up to twice their rated power in solar panels, so you can make the most of your roof and still charge the battery on cloudy days.
Four roof faces, no problem
Up to four independent MPPT inputs on single-phase models mean panels on east, west and north roofs each work at their best.
Built-in safety
Arc-fault detection (AFCI), surge protection on both DC and AC, leakage current monitoring and a solar DC isolator come as standard.
Smart energy management
The built-in energy manager decides when to use, store or export your solar, and the iSolarCloud app shows it all live, refreshed every 10 seconds.
Ready for your battery
Pair it with a Sungrow SBH battery now, or install the inverter today and add storage later without replacing anything.
Backed by Sungrow. Watched by us.
Your inverter reports to the iSolarCloud app around the clock, and Snap Solar monitors your system from our side too. If something ever needs attention, you call Snap Solar, not an overseas hotline. We manage every warranty claim from start to finish, with local offices in Mackay and on the Sunshine Coast and our own support technicians.
The numbers
| SH8.0RS / SH10RS | SH15T / SH20T / SH25T | |
|---|---|---|
| Grid connection | Single phase | Three phase |
| Rated AC output | 8 kW / 9.999 kW | 15 / 20 / 25 kW |
| Recommended max. solar | 16 / 20 kWp | 30 / 40 / 50 kWp |
| MPPT inputs | 4 (16 A each) | 3 (32 / 32 / 16 A) |
| Battery charge / discharge | Up to 10 kW, 50 A | Up to 30 kW charge, 50 A |
| Backup switch time | <10 ms | <10 ms |
| Backup peak output | 13.68 kVA for 10 s | 25.5 / 32 / 36.5 kVA for 10 s |
| Whole-home backup | 63 A backup path | 63 A per phase, 100% unbalanced output |
| Max. efficiency | 97.4% / 97.5% | 98.1% / 98.2% |
| Protection | IP65, AFCI, surge type II | IP65, C5, AFCI, surge type II |
| Size (W × H × D) | 605 × 435 × 181 mm, 29 kg | 620 × 480 × 245 mm, 38–40 kg |
| Monitoring | iSolarCloud app and web | iSolarCloud app and web |
