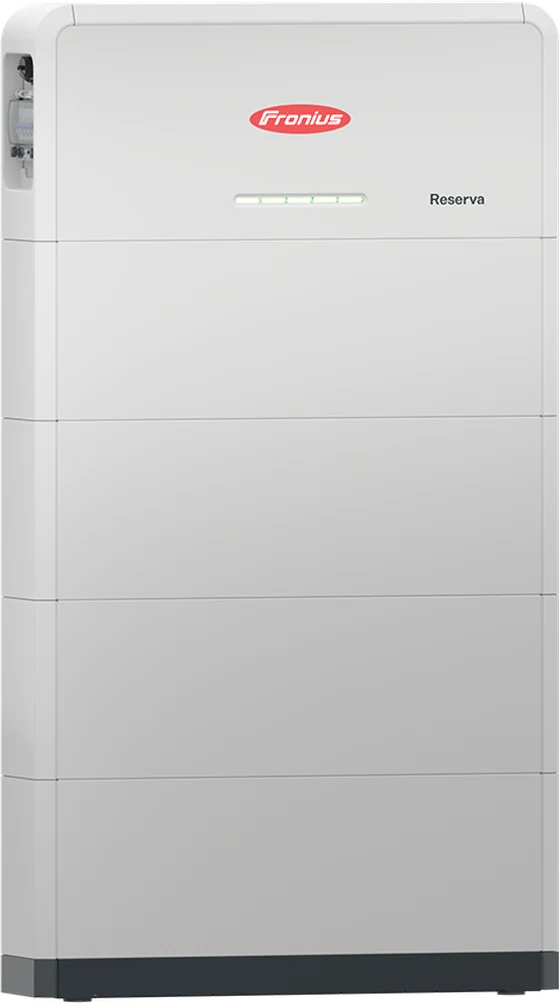

FroniusReserva
The battery designed by Fronius to work with Fronius. It pairs perfectly with your GEN24 Plus inverter, charges straight from solar with minimal losses, and grows from a compact 6.3 kWh up to a 31.9 kWh Reserva Pro tower.
- DC-coupled
minimal losses - Modular
& expandable - LFP
safe cells - Full
backup - Solar.web
monitoring - IP65
rated

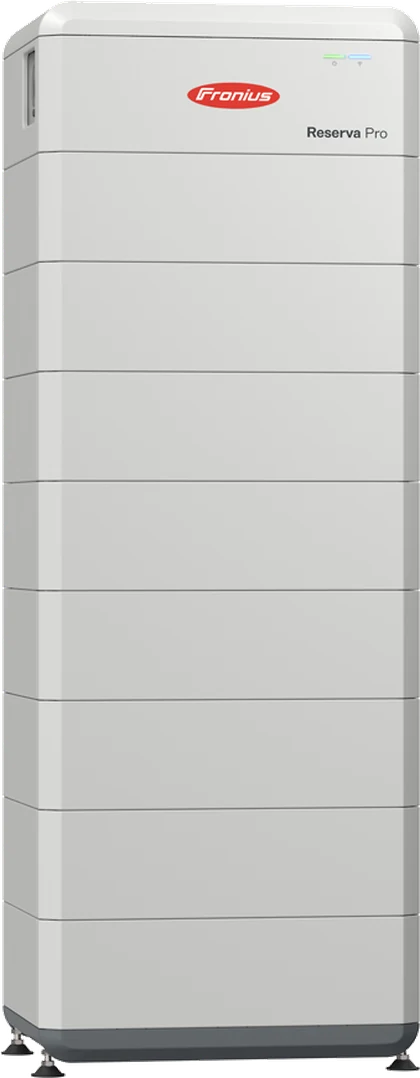

Reserva or
Reserva Pro?
Both batteries use the same Fronius engineering and plug into the same GEN24 Plus inverter. The difference is how much storage and power your home needs. Tap one to build it below.
Size it right.
Grow it later.
Battery modules stack on a base with the battery management system on top. Add modules to a tower, or add more identical towers side by side as your needs grow.
Example only. We base this on 12 kWh from sunset to sunrise, which is common for a Queensland family home. Your proposal is sized from your actual bills and matched to your inverter.
The grid goes down.
Your battery takes over.
With the Fronius Backup Controller and Backup Switch, your GEN24 Plus and Reserva switch your home to battery power automatically when the grid fails. Reserva Pro can even black-start the system by itself, and your solar keeps recharging the battery through the day.
Backup needs a Fronius GEN24 Plus inverter with the Fronius Backup Controller and Backup Switch. Your proposal shows whether your system backs up the whole home or selected essential circuits.
Fronius
inverter.
Fronius battery.
Battery, inverter and monitoring all come from one maker, so they're designed, tested and supported as one system. There's one app, Fronius Solar.web, and one brand to call if you ever need help.
More than
the hardware
A perfect match for GEN24 Plus
Reserva is built by Fronius specifically for its own hybrid inverters, so there's no guesswork about compatibility, firmware or who's responsible if something needs attention.
DC-coupled for efficiency
Solar power flows from your panels into the battery on the DC side, without extra conversions. Less energy is lost between the roof and the battery, so more of your solar ends up stored.
Safe LFP chemistry
Both models use lithium iron phosphate (LFP) cells and are certified to IEC 62619, which includes a thermal runaway test, and VDE 2510-50.
Built to grow
Start with the storage you need now, then add modules or identical towers later. Up to four towers can run in parallel.
Everything in Solar.web
Watch your solar, battery and home use live in the Fronius Solar.web app, and let Snap Solar keep an eye on your system from our side too.
Indoor or protected outdoor
IP65-rated and happy from −20 °C up to 50 °C or more, so it can go in the garage or a sheltered spot outside.
Backed by Fronius. Handled by us.
Reserva and Reserva Pro carry a 10-year Fronius warranty. If something ever needs attention, you call Snap Solar, not an overseas hotline. We manage every warranty claim from start to finish, with local offices in Mackay and on the Sunshine Coast and our own support technicians.
The numbers
| Reserva | Reserva Pro | |
|---|---|---|
| Usable energy per tower | 6.31 · 9.47 · 12.63 · 15.79 kWh | 11.9 · 15.9 · 19.9 · 23.9 · 27.9 · 31.9 kWh |
| Modules per tower | 2 to 5 (3.15 kWh each) | 3 to 8 |
| Charge/discharge power | 6.55 to 16.38 kW max | 11.8 to 31.6 kW rated |
| Max current | 32 A | 50 A |
| Parallel towers | Up to 4 (identical) | Up to 4 |
| Chemistry | LFP | LFP, 99.5% depth of discharge |
| Protection rating | IP65 | IP65 |
| Ambient temperature | −20 to 55 °C | −20 to 50 °C |
| Size (H × W × D) | 890–1,640 × 772 × 176 mm | 775–1,575 × 579 × 449 mm |
| Weight | 86.5 to 187 kg | 126 to 306 kg |
| Compatible inverters | Primo GEN24 Plus, Symo GEN24 Plus, Verto Plus | Primo GEN24 Plus (12.0–20.0), Symo GEN24 Plus, Verto Plus |
| Certifications | IEC 62619, VDE 2510-50, CE, UN38.3 | IEC 62619, VDE 2510-50, RCM, CE, UN38.3 |
| Warranty | 10 years | 10 years (75% state of health) |
