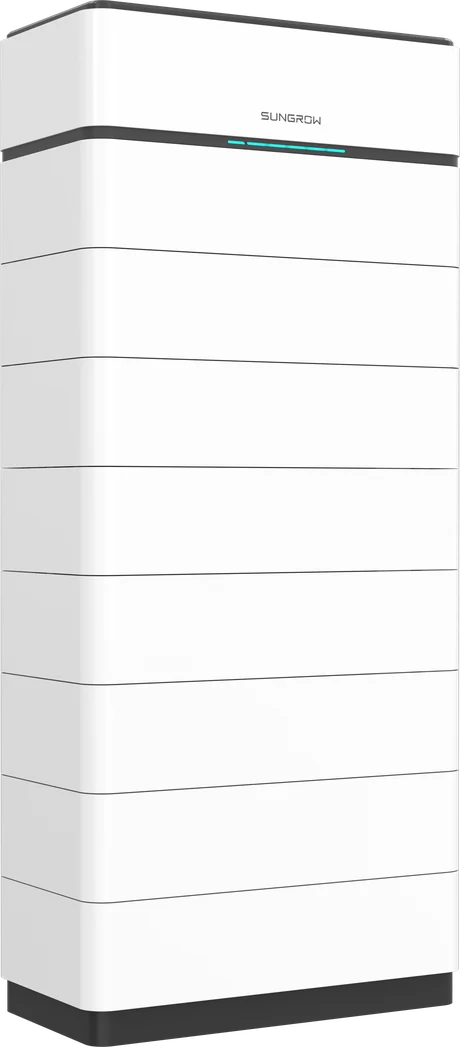

SungrowSBH
A big-capacity, high-voltage home battery from one of the world's largest inverter makers. Stack 5 kWh modules from 20 up to 40 kWh per tower, pair it with a Sungrow hybrid inverter, and run the whole system from one app.
- High power
50 A continuous - Modular
4 to 8 modules - Plug & play
no cables - LFP
safe cells - iSolarCloud
app - IP55
indoor / outdoor
Inverter to battery.
All Sungrow.
Your solar panels, Sungrow hybrid inverter and SBH battery work as one system, managed from the iSolarCloud app. Tap each part to see what it does.
Big storage.
Room to grow.
Each SBH module holds 5 kWh. Modules plug straight into each other with no cables between them, four to eight per tower, and up to four towers can run in parallel for as much as 160 kWh.
Example only. We base this on 12 kWh from sunset to sunrise, which is common for a Queensland family home. Your proposal is sized from your actual bills and matched to your inverter.
The grid goes down.
Your battery takes over.
Sungrow hybrid inverters have a built-in backup port. When the grid drops out, your home switches to the SBH battery automatically, and your solar keeps recharging it through the day so you can ride out long outages.
Backup runs through your Sungrow hybrid inverter's backup port. Your proposal shows whether your system backs up the whole home or selected essential circuits.
More than
the hardware
Serious power for big homes
Up to 50 A of continuous charge and discharge current means the SBH400 can deliver more than 28 kW. That's enough to run air-con, pool pumps and EV charging at the same time.
Safe LFP chemistry
Lithium iron phosphate (LFP) prismatic cells are known for thermal stability and long life, and the battery is certified to IEC 62619, VDE 2510-50 and IEC 63056.
Layered protection
Built-in protection against over- and under-voltage, over-current and over- and under-temperature, plus a DC breaker on every battery.
Built to grow
Start with four modules and add more later, or add towers in parallel. Up to four towers can work together for as much as 160 kWh.
One app for everything
See your solar, battery, home use and grid in real time in the Sungrow iSolarCloud app, and let Snap Solar monitor your system from our side too.
Quiet and low-maintenance
Natural convection cooling means no fans to wear out or hum, and the IP55 rating lets it go indoors or outdoors.
Backed by Sungrow. Handled by us.
The Sungrow SBH carries a 10-year manufacturer warranty (conditions apply). If something ever needs attention, you call Snap Solar, not an overseas hotline. We manage every warranty claim from start to finish, with local offices in Mackay and on the Sunshine Coast and our own support technicians.
The numbers
| Battery module | 5.0 kWh, 45 kg |
|---|---|
| Models | SBH200 · 250 · 300 · 350 · 400 (4 to 8 modules) |
| Usable energy per tower | 20 · 25 · 30 · 35 · 40 kWh |
| Nominal power per tower | 14.08 kW (SBH200) to 28.16 kW (SBH400) |
| Continuous current | 50 A charge and discharge |
| Parallel towers | Up to 4 (160 kWh) |
| Battery chemistry | LiFePO4 (LFP) prismatic cells |
| Depth of discharge | Up to 100% (settable) |
| Protection rating | IP55, indoor or outdoor |
| Cooling | Natural convection (no fans) |
| Operating temperature | Charge 0 to 50 °C · discharge −20 to 50 °C |
| Size (W × H × D) | 675 × 900–1,540 × 350 mm, floor standing |
| Weight | 196 kg (SBH200) to 376 kg (SBH400) |
| Certifications | IEC 62619, VDE 2510-50, IEC 63056, IEC 62040, IEC 62477, CE, UN38.3 |
| Inverter | Sungrow SH-series hybrid (from our range) |
| Warranty | 10 years (conditions apply) |
